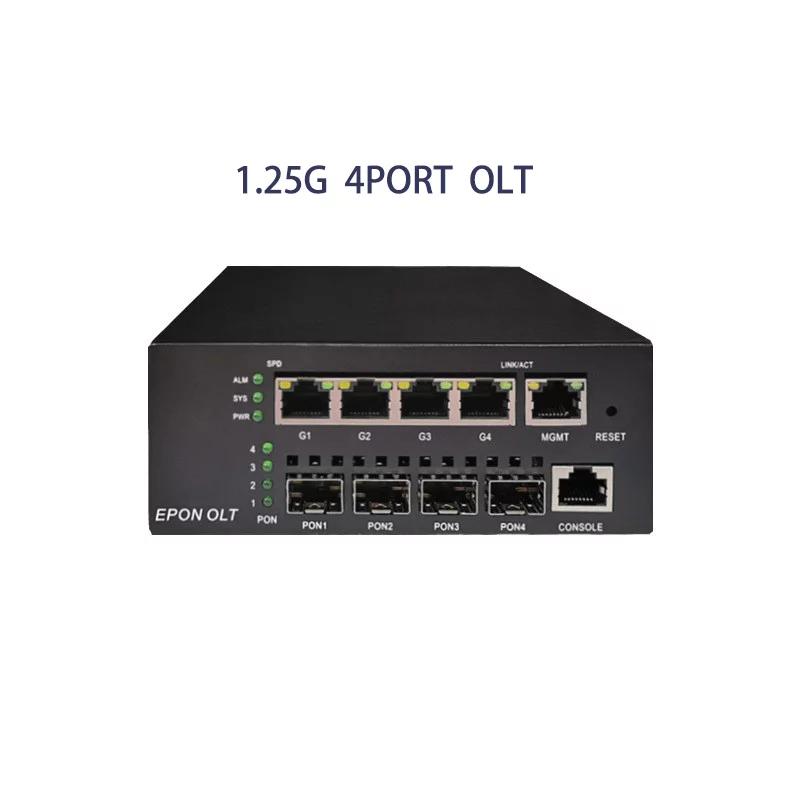

12V DC EPON OLT, ONT ONU Auto-registration
USD $299.99
MINI EPON OLT provides 4GE copper independent interface for uplink.
4* EPON OLT ports for downstream.
It can support 256 ONUs under 1:64 splitter ratio.
Guaranteed Safe Checkout
Description
Features
- Fully support IEE802.3ah protocol
- Support dynamic bandwidth allocation (DBA), the minimum adjustment granularity is 1Kbps
- Support upstream and downstream symmetrical 1Gbps bandwidth
- Support AES-128 encryption for each logical link
- Powerful OAM function to realize remote management, maintenance and upgrade of ONU
- Support ONU automatic discovery and registration (plug and play)
- supporting agreement
- Support IEEE802.3, IEEE802.3u, IEEE802.3ab
- Support IEEE802.1QVLAN
- Support IEEE 802.1P QoS
- Network management CLI-based local serial port management and remote GUI management
- Support IGMPv1/v2 protocol, support IGMIP Snooping and IGMP Proxy
- Support ONU batch configuration and remote upgrade Real-time alarm detection, accurate fault location
- Support alarm information sent to the mailbox, support SMS alarm
Specification
| Product name | MINI 4 EPON OLT DC |
| Power supply | DC12V/5A (external power supply) |
| Power consumption | 20W |
| Working temperature | -10~55℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Frame size | 15*13.3*5.3cm |
| Working wavelength | 1310 (RX) /1490 (Tx) |
| Optical power | +2.5~ +10dBm |
| Receiving sensitivity | -27dBm |
| Maximum transmission distance | 20km |
| Maximum splitting ratio | 1:64 |
| Machine capacity | Support 4 PON systems, 256 ONUs |
| MAC address table machine | 8K |
| Uplink Port | 4 gigabit electrical ports |
| PON Port | 4 PX20, PX20+, PX20++, PX20+++ |
| Management Port | 1 FE network port, which can be accessed through the network |
| MTBF | 100,000 hours |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 10 × 10 × 10 cm |
| Power adapter type |
AU Adapter ,EU Adapter ,UK Adapter ,US Adapter |
| OLT PON Number |
4PON |
| OLT PON Technology |
EPON OLT |
| OLT Uplink Rate |
1G |
