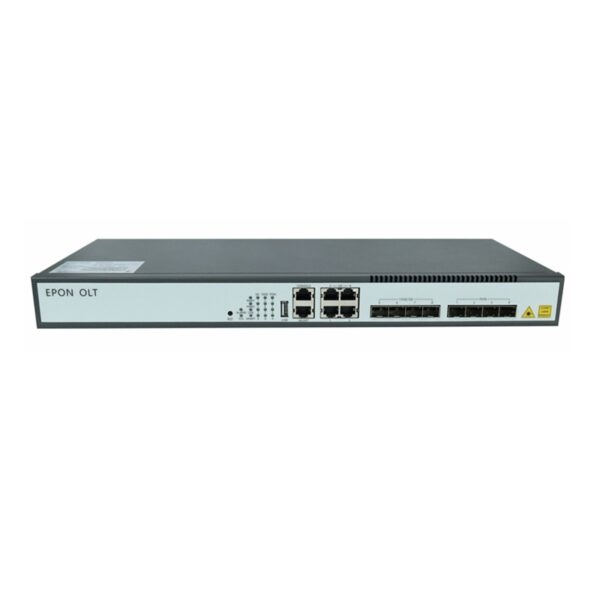

4 EPON OLT 10G * 4 SFP+uplink port, LL-EPOLT-XE-E04
4 EPON OLT 10G * 4 SFP+uplink port, LL-EPOLT-XE-E04 Original price was: EUR €518.17.Current price is: EUR €430.34.
-17%
40G QSFP+ DAC Cable
40G QSFP+ DAC Cable, Passive Twinax Copper, 0.5m–7m - Image 2
40G QSFP+ DAC Cable, Passive Twinax Copper, 0.5m–7m - Image 3
40G QSFP+ DAC Cable, Passive Twinax Copper, 0.5m–7m - Image 4
40G QSFP+ DAC Cable, Passive Twinax Copper, 0.5m–7m - Image 5
Click to enlarge
40G QSFP+ DAC Cable
40G QSFP+ DAC Cable, Passive Twinax Copper, 0.5m–7m - Image 2
40G QSFP+ DAC Cable, Passive Twinax Copper, 0.5m–7m - Image 3
40G QSFP+ DAC Cable, Passive Twinax Copper, 0.5m–7m - Image 4
40G QSFP+ DAC Cable, Passive Twinax Copper, 0.5m–7m - Image 5

40G QSFP+ DAC Cable, Passive Twinax Copper, 0.5m–7m

EUR €22.83 EUR €61.47Price range: EUR €22.83 through EUR €61.47

19 reviews
AOC DAC
10G 40G

Estimated delivery dates (historical statistics)

  • Automatic Volume Discount
  • Mix & Match eligible Optical Module Transceivers products:
  • 3+ items → Save 5%
  • 5+ items → Save 8%
  • 10+ items → Save 10%
  • No coupon code required. Discount applies automatically at cart.
SKU: 40G QSFP+ DAC Category: Tags: , , , , , , , ,

The Luleey 40G QSFP+ DAC Cable provides a passive QSFP+ to QSFP+ Twinax copper link up to 7m for switches, servers, and data center connections.

  • Passive QSFP+ to QSFP+ Twinax copper design
  • Supports aggregate data rates up to 40Gbps
  • Available in 0.5m, 1m, 2m, 3m, 5m, and 7m
  • Four-lane direct electrical connection
  • No separate optical transceivers required
  • Low-latency short-distance transmission
  • Hot-pluggable QSFP+ interfaces
  • Compliant with the SFF-8436 form-factor standard
  • Compatible coding available for major equipment brands
  • Suitable for switch stacking and rack-level connections

Guaranteed Safe Checkout

1~3 Year Warranty | 15-Day Returns | 30-Day Exchange

Description

40G QSFP+ DAC Cable Overview

The 40G QSFP+ DAC Cable is a passive direct attach copper cable designed for short-distance 40Gbps connections between devices equipped with compatible QSFP+ ports.

The cable integrates a QSFP+ connector at each end with a fixed Twinax copper cable assembly. It carries electrical signals directly between the connected devices without optical conversion, eliminating the need for separate optical transceivers and fiber patch cables.

The 40G connection uses four parallel electrical lanes to provide an aggregate data rate of 40Gbps. This makes the cable suitable for switch-to-switch, switch-to-server, switch-to-storage, router, high-performance computing, and data center rack connections.

Standard selectable lengths include 0.5m, 1m, 2m, 3m, 5m, and 7m. Shorter cables are recommended wherever possible because they are easier to route and generally provide greater signal margin. Longer passive versions require suitable cable gauge and compatible host equipment.

Compatibility coding is available for Cisco, Arista, Juniper, Huawei, H3C, HPE Aruba, Intel, Mellanox, MikroTik, Ubiquiti, TP-Link, ZTE, Brocade, Extreme, Alcatel-Lucent, and other supported platforms. Customers should provide the exact device model used at each end.

Key Features

  • Passive QSFP+ to QSFP+ cable assembly
  • Aggregate transmission rate up to 40Gbps
  • Four-channel electrical architecture
  • Direct Twinax copper transmission
  • Standard lengths from 0.5m to 7m
  • No optical conversion required
  • No separate QSFP+ modules required
  • Low-latency rack-level connection
  • Hot-pluggable QSFP+ interfaces
  • SFF-8436 form-factor compliance
  • Multiple compatibility coding options
  • Suitable for enterprise and data center networks

Applications

  • Data center switch interconnection
  • Switch stacking and cascading
  • Switch-to-server connections
  • Switch-to-storage connections
  • QSFP+ network adapter connections
  • High-performance computing
  • Storage area networks
  • Enterprise core networks
  • Same-rack cabling
  • Adjacent-rack connections

Technical Specifications

Parameter Specification
Brand Luleey
Model LL-40GDAC
Product Type Passive Direct Attach Copper Cable
Host Interface QSFP+ to QSFP+
Maximum Data Rate 40Gbps
Lane Architecture 4 Electrical Lanes
Transmission Medium Twinax Copper
Available Lengths 0.5m, 1m, 2m, 3m, 5m, 7m
Cable Gauge 30AWG / 26AWG
Product Standard SFF-8436
Installation Hot-Pluggable
Compatibility Coding Vendor-Specific or Generic
Separate Transceivers Required No
External Optical Connectors None



Reviews (19)

19 reviews for 40G QSFP+ DAC Cable, Passive Twinax Copper, 0.5m–7m

5.0
Based on 19 reviews
5
94
94%
4
5
5%
3
0%
2
0%
1
0%

  1. Dastan Nurbolatev –

    The finish is very good. I am satisfied.

    0
    0

  2. Shante Dezern –

    I build a server and 10g and use it well. I’ll use 7m cable well!

    0
    0

  3. Thibault Silvestre –

    0
    0

  4. Ellie Julius –

    0
    0

  5. Tandy Hoyte –

    0
    0

  6. Shanda Gatling –

    0
    0

  7. Gianmaria De Sario –

    0
    0

  8. Efan Wharton –

    0
    0

  9. Jannette Wilmes –

    10Gbps supeeerr with keeplink and DAC cable

    0
    0
Add a review
Q & A

Q & A

Ask a question
40G QSFP+ DAC Cable, Passive Twinax Copper, 0.5m–7m 40G QSFP+ DAC Cable, Passive Twinax Copper, 0.5m–7m
Your question
* Question is required
Name
* Name is required
* Please tick the checkbox to proceed
There are no questions yet
Additional information
Weight0.3 kg
Dimensions10 × 10 × 10 cm
Cable Length0.5m, 1m, 2m, 3m, 5m, 7m
Compatible brandsAlcatel-Lucent, Arista, Brocade, Cisco, Extreme, H3C, HPE-Aruba, Huawei, Intel, Juniper, Mellanox, Mikrotik, other(note brand when checkout), TPlink, Ubiquiti(UBNT), ZTE
SFP Cable TypeDAC
Data rate of SFP Module40G
