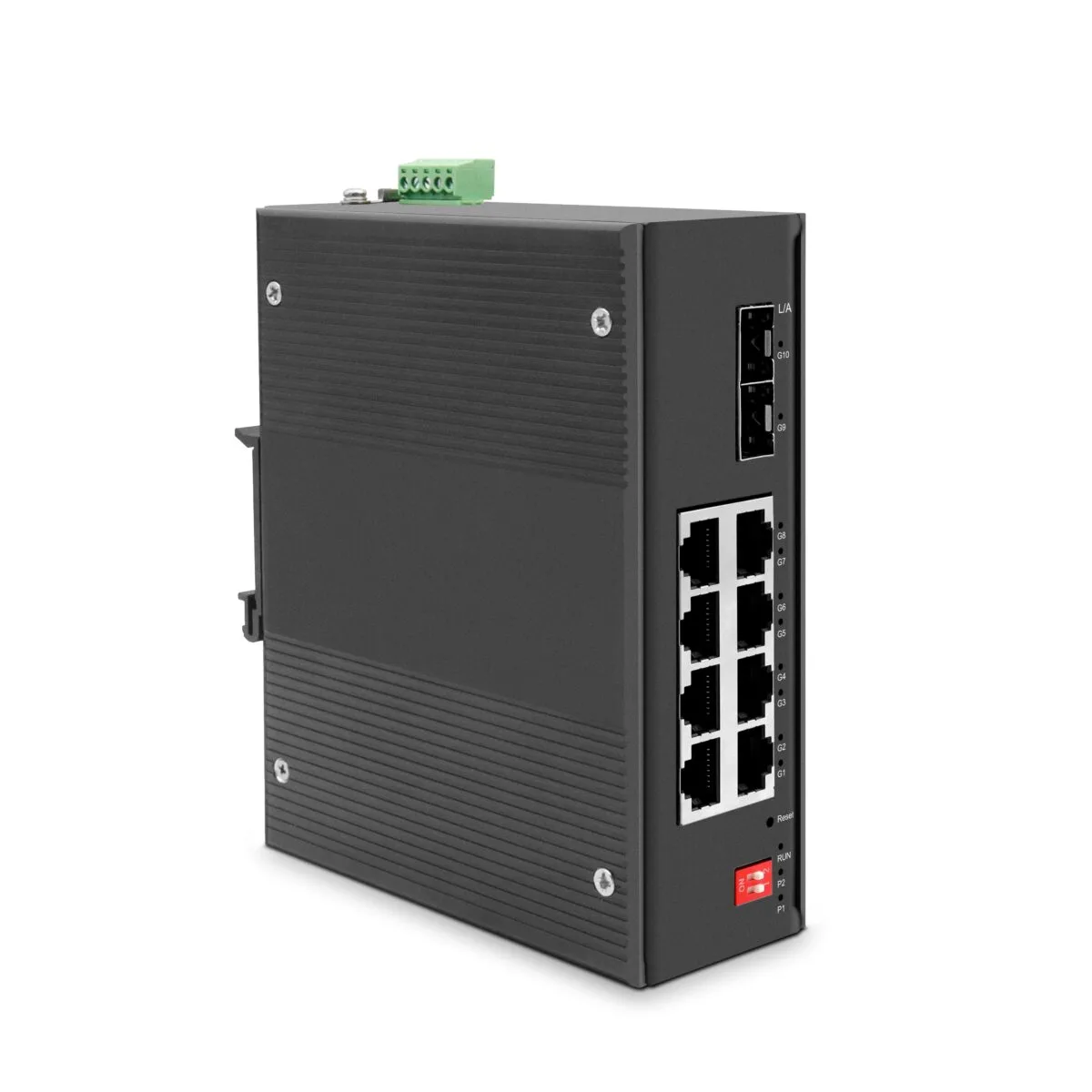

INS2M2GF8GT,L2+ Managed industrial Ethernet switch, with 2 Gigabit fiber ports and 8 Gigabit copper ports

133,75 EUR €

L2+ Managed Switch
Support Layer 2 network management function: support web network management (Chinese and English) support vlan, QOS, RSTP, SNMPV1/V2, IGMP Snooping V1/V2/V3, support GMRP support: port aggregation, loop detection, port mirroring, bandwidth control, jumbo frame setting, static MAC, storm suppression, port statistics, file management configuration upload and download
*Supports one-key restoration of factory settings and reboot.

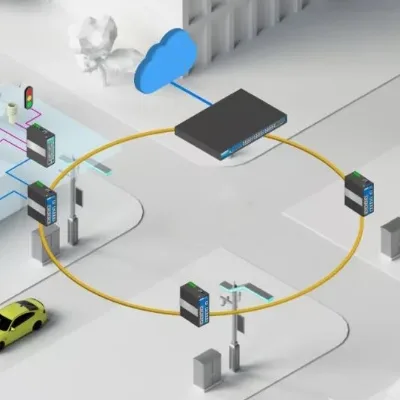

*Provides two-block dipswitch function (standard shared and vlan port isolation, ring network)
*EMC: 15kv air discharge, 8kv contact discharge, 6kv port lightning protection, 4kv power lightning protection
*IP40 protection level, industrial grade standard

Guaranteed Safe Checkout

Description

Specification

Model NumINS2M2GF8GT
BrandLuLeey
Product NameINS2M2GF8GT,Managed industrial Ethernet switch, with 2 Gigabit fiber ports and 8 Gigabit copper ports

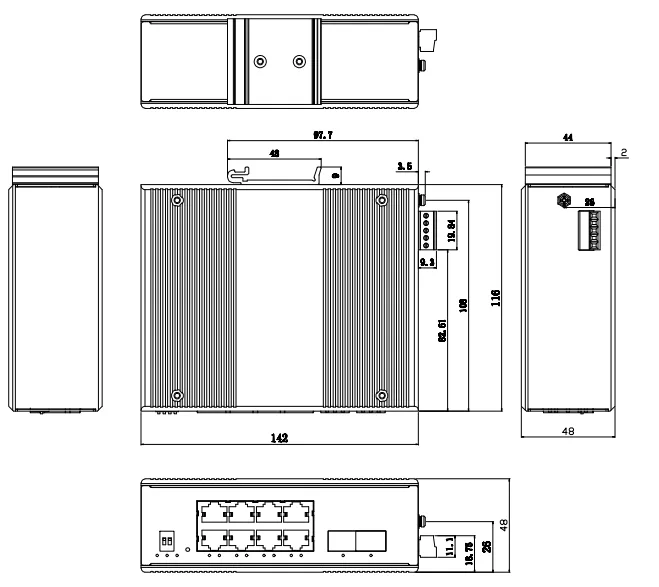

Size116mm*142mm*48mm
Back plane bandwidth 20 Gbps
Installation methodDIN rail mounting
POENot Support
web managementyes
RJ45 Ports10/100/1000M
SFP PortsSFP 1000M
IP RatingIP40
Power InputDual Power Supply
PowerDC9-48V
PoE Budget/Single  PortNot PoE
Shell MaterialAluminum Shell
Working Temperature -40~85˚C
Storage Temperature -40~85˚C
LULEEY INS2M2GF8GT DATASHEET

Features

Industrial switches engineered for extremes | LuLeey

Industrial switches pass 16 industrial-grade test procedures to meet EMC Level 4 requirements.

Temperature Protection

-40℃～85℃ working environment

Industrial Grade Chips

All ports have wire-speed forwarding capability
Supports Auto MDI/MDIX (port rollover) function

EMC LEVEL 4

15kv air discharge, 8kv contact discharge, 6kv port lightning protection, 4kv power supply lightning protection

IP40

Adopting industrial grade IP40 protection level, stable and worry-free operation, safe and reliable

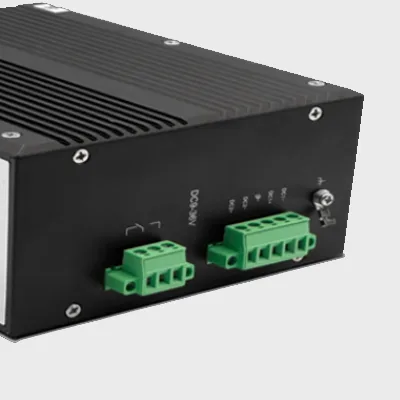

Power Supply Protection

Voltage range DC 9~48V, dual power supply redundancy

Port Isolation Switch

Provides two-position dip switch functionality (storm suppression and vlan port isolation)

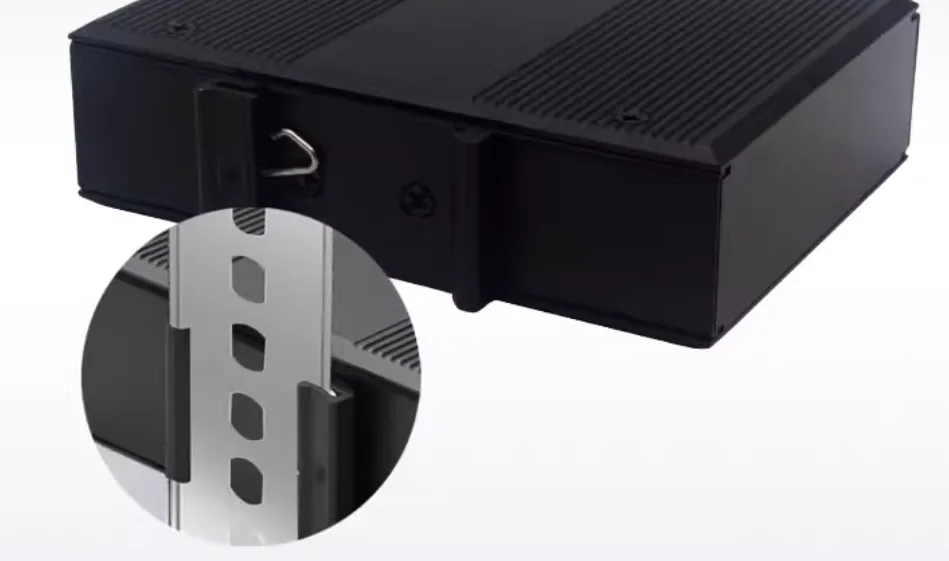

DIN
Additional information
Weight 0,85 kg
Dimensions 10 × 10 × 10 cm
Industrial Switch Fiber Port

SFP 1000M

Industrial Switch RJ45 Port

10/100/1000M

Reviews (0)

Reviews

There are no reviews yet

Be the first to review “INS2M2GF8GT,L2+ Managed industrial Ethernet switch, with 2 Gigabit fiber ports and 8 Gigabit copper ports”
Q & A

Q & A

Ask a question
There are no questions yet
Shopping Services

You May Also like

Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

8SC 2RJ45 1000M Fiber Optic Media Converter Ethernet  Switch PCBA Board Industrial Grade

Price range: 42,25 EUR € through 45,75 EUR €
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

INS2M2GF18GT,20-port L2+ managed rack mount Ethernet switch with 2 Gigabit optical ports, 18 Gigabit electrical ports

387,75 EUR €
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

SC UPC Optical Fiber FTTH Connector

Price range: 7,75 EUR € through 30,25 EUR €
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

E2000 adapter E2000-FC E2000-LC E2000-ST converter

26,00 EUR €
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

INS2UM2GF18GT,20-port rack Ethernet switch with 2 Gigabit optical and 2 Gigabit electrical ports, 16 Gigabit electrical ports

362,00 EUR €
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

MPO/MTP Fiber Cable, 8 core, Female to Female, OM3 MM

Price range: 25,00 EUR € through 64,75 EUR €
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

40G QSFP+ SMF QSFP+40G-SR4 40KM 40GBASE-ER4 QSFP+ Module 1310nm

334,50 EUR €
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

LC/APC to SC/UPC Single Mode SC/UPC(Male) To LC/APC(Female) SM-9/125 Converter

8,75 EUR €
xgpon optical power meter
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

10G XGPON Optical Power Meter

Price range: 73,25 EUR € through 517,00 EUR €
Hot
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

1.25G Gigabit SMF SFP module ,LC 20km DDM 1 pair

Price range: 12,25 EUR € through 14,75 EUR €

    Related Products

    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    INS2UM2GF18GT-16POE,20-port POE rack Ethernet switch with 2 Gigabit optical and 2 Gigabit electrical ports, 16 Gigabit POE electrical ports

    383,50 EUR €
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    INS2UM2GF4GT-4POE,6-port POE industrial Ethernet switch, with 2 Gigabit fiber ports and 4 Gigabit POE copper ports

    69,00 EUR €
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    INS2M2GF4GT-4POE,6-port POE industrial Ethernet switch, with 2 Gigabit fiber ports and 4 Gigabit POE copper ports,Managed Switch

    72,50 EUR €
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    INS2UM1GF9GT-8POE,10-port POE industrial Ethernet switch, with 1 Gigabit fiber ports, 1 Gigabit copper ports and 8 Gigabit POE copper ports

    123,25 EUR €
    Hot
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

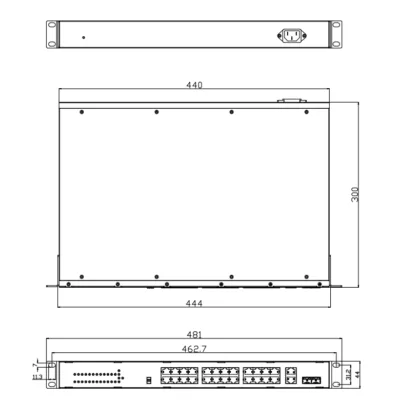

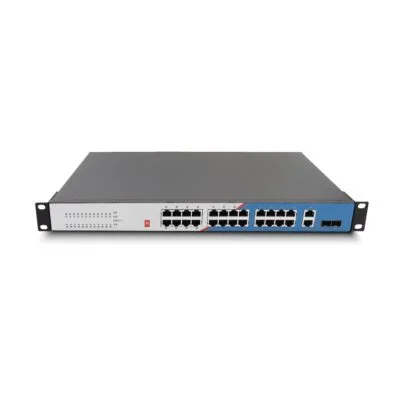

    INS2UM2GF26GT,28-port rack Ethernet switch with 2 Gigabit optical and 2 Gigabit electrical ports, 24 Gigabit electrical ports
