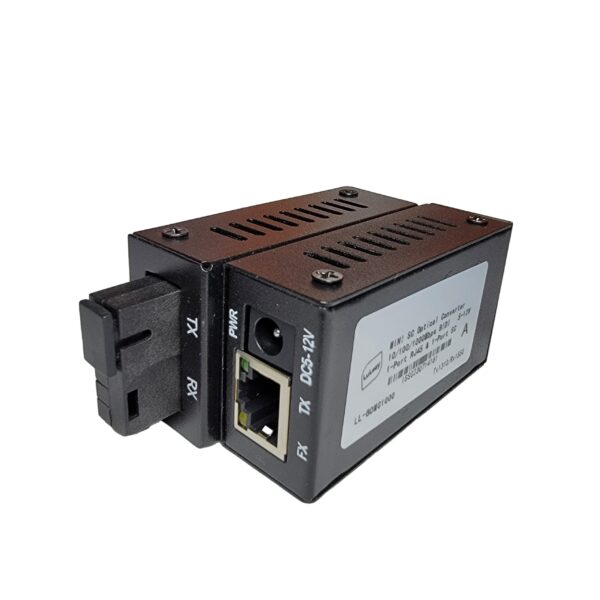

1000M mini SMF SC BIDI Fiber Media Converter
Price range: GBP £12.25 through GBP £13.75

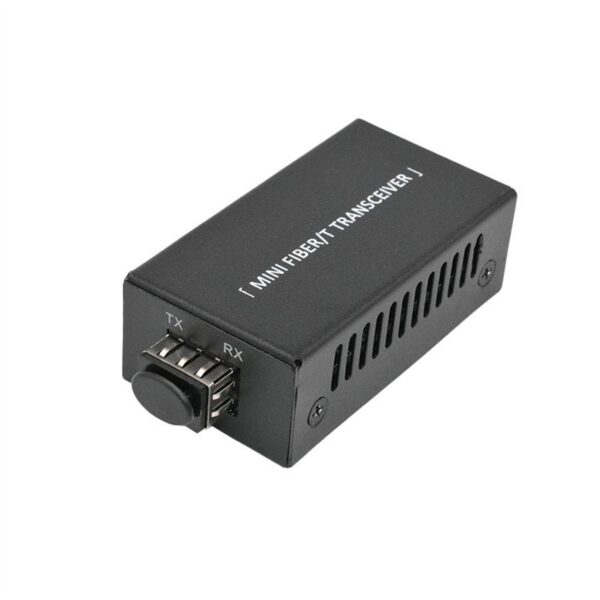

1000M SFP Media Converter
Price range: GBP £8.50 through GBP £10.00
-38%Hot
10GBase-T SFP+ to RJ45 Copper Module 30m/80m/100m,sfp module
Price range: GBP £19.00 through GBP £38.00
- High-speed Connectivity: Experience lightning-fast Ethernet speeds with our 10GBase-T sfp module
- Easy Conversion: Our SFP to RJ45 module delivers seamless photoelectric conversion for hassle-free Ethernet connections.
- Full Brand Compatibility: To work with following brands, please choose Cisco:Accton, Avocent, Broadcom, BlueCoat, Cumulus, Chelsio, Centec, D-LINK, Edgecore, F5, Fortigate, Ixia, Linkysys, Mikrotik, Netgear, Netapp, Sundray, Supermicro, Solarflare, Ubiquiti(UBNT), Wayos, Xilinx, Zyxel
- Durable Design: Constructed with a zinc alloy casing, our module offers excellent heat dissipation and can self-adapt to various Ethernet speeds, including 10G/5G/2.5G/1G, sfp to rj45
- Extended Reach: Our module boasts a range of up to 30m/80m/100m, providing reliable connectivity over long distances.
- sfp to rj45, Low temperature working module
Guaranteed Safe Checkout
Description
10GBASE-T SFP+ Transceiver Module (Copper, RJ-45) 10G BASE-T SFP+ compatible SFP+ transceiver provides 10GBase-T throughput up to 30m/80m/100m over cat6a/cat7 copper cable via RJ45 connector.Suitable for switches, routers, firewalls, network cards, servers, storage devices, fiber optic transceivers, and other devices..
About General brand: Compatible with Cisco, Ruijie, ZTE, TP-LINK, Hikvision, Netgear, Mikrotik, ASUS, Boda, Tenda, Mercury, netLINK, UBIQUITI, Banana Pi
About Chips
| Brand | Chips | Transfer Rate | Cable Distance | Power Consumption |
| LuLeey | Marvell 88X3310 | SFP+ 10G | 30m | 2.31 W |
| LuLeey | TAIWAN CHIPS | SFP+10G/5G/2.5G | 30m | 2.65 W |
| LuLeey | Broadcom BCM84891L | SFP+ 10G/5G/2.5GSFP 1G | 80m | 1.88 W |
| LuLeey | Broadcom BCM84891L | SFP+ 10G/5G/2.5GSFP 1G | 100m | 1.92 W |
| LuLeey | Marvell AQR113C | SFP+1.25G/2.5G/5G/10G | 30m | 2.37 W |
Features
- Plug and Play.
- Suitable for high and low temperatures.
- High quality chip
- Full Compatibility ,default for Cisco, Fortinet, Ubiquiti, Netgear, D-Link, TP-Link, Linksys, Broadcom, Edge-core, EMC, F5, Meraki, Norkia, QTC, Supermicro, and Other Open Switches
- Max. Power Consumption less 2.5W
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability
- Terminated RJ45 Connectors, Allowing 10G Bandwidth over Existing Infrastructure
- Hot Pluggable SFP+ MSA Compliant
Specification
| Model | 10GBASE-T |
| Data Rate | 10G/5G/2.5G/1.25G |
| Packaging | SFP+ |
| Working voltage | 3.3V |
| cable | 10 Gigabit Ethernet over Cat 6a |
| Working temperature | 0 °C ~+70 °C |
| Cable Distance | 30M/80M/100M |
| Support DDM | Yes |
| Size | 60x14x14mm |
Additional information
Reviews (12)
Q & A
