2.5G GPON/EPON ONU LL-XZ110

Original price was: GBP £52.50.Current price is: GBP £45.00.

SKU: 2.5G GPON/EPON ONU Category: Tags: , , , ,

Guaranteed Safe Checkout

Description

how to use

Features

  1. Support parameter modifications such as SN/ONUID/VENDORID/MAC/LOID…
  2. Supports port speed limit and bandwidth control
  3. Fully compatible with IEEE802.3ah and ITU-U G.984 standards
  4. Supports up to 20KM transmission distance
  5. Supports data encryption, broadcast suppression, VLAN configuration, etc
  6. Supports Dynamic Bandwidth Allocation (DBA)
  7. Support ONU automatic discovery/link detection/remote software upgrade
  8. Support port forwarding configuration
  9. Support power outage alarm
  10. Support QoS configuration
  11. Support port isolation
  12. Supports fire protection settings
  13. Support ACL
  14. Support TR069 management method
  15. Supports PPPoE/DHCP Server/IPTV/NAT

Specification

ModelLL-XZ110
ChipsRTL9601DVA
Ethernet PortAuto MDI/MDI-X
1*10/100/1000/2500M
1*10/100/1000M
100m Cable Max Distance
PON PortAuto GPON/EPON
SC-UPC
20km Fiber Max Distance
IN GPONUP 1.25G / DOWN 2.5G
IN EPONUP 1.25G / DOWN 1.25G
Receiver Sensitivity-7dbm~-28dbm
Product Size132x83x30mm
Operating Temperature-10℃~60℃
Power AdapterDC 12V  2.1×5..5mm
Product ManagementWEB/TELNET/TR069/OMCI/OAM
Additional information
Weight 0.35 kg
Dimensions 10 × 10 × 10 cm
Insert port

SC APC

,

SC UPC

Power adapter type

AU Adapter

,

EU Adapter

,

UK Adapter

,

US Adapter

Reviews (0)

Reviews

There are no reviews yet

Be the first to review “2.5G GPON/EPON ONU LL-XZ110”
Q & A

Q & A

Ask a question
There are no questions yet
Shopping Services

You May Also like

Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

Headless PLC Fibre Optic Splitter, No Connector, Mini PLC Steel Tube, 1×8

Price range: GBP £7.25 through GBP £57.00
-20%Hot
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

XGSPON STICK ONU SFP+ Transceiver, XGPON ONU, LL-XS1025

Original price was: GBP £150.00.Current price is: GBP £120.00.
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

Reverse POE Switch 2SC 8RJ45 1000M Fiber Optic Media Converter Ethernet  Switch PCBA Board Industrial Grade

Price range: GBP £21.00 through GBP £24.00
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

S09 High Precision Optical Fiber Cleaver

Price range: GBP £18.75 through GBP £82.50
Hot
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

5 Port Gigabit Ethernet Switch, Unmanaged Switches and Hub

GBP £21.00
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

FC-ST/ST-FC Single-mode FC Male ST Female Connector Fiber Optical Adapter Flange Coupler Adapter Converter

GBP £8.25
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

MPO/MTP Fiber Cable, 8 core, Female to Female, OM3 MM

Price range: GBP £21.75 through GBP £56.25
Hot
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

SC adapter 0dB SC/UPC Male -SC/APC Female Optical Fiber Adapter Converter

GBP £7.50
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

MPO/MTP to SC UPC 12 core, SM

Price range: GBP £37.50 through GBP £72.00
Tags: , ,
Quick view
Add to wishlist
Select options This product has multiple variants. The options may be chosen on the product page

PLC Splitter 1×16 SC APC / UPC

Price range: GBP £9.75 through GBP £105.00

    Related Products

    -29%Hot
    XPON STICK
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

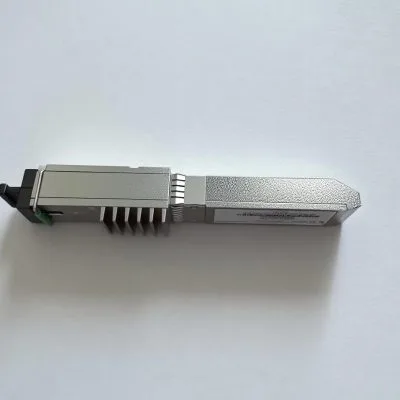

    2.5G XPON STICK SFP ONU

    Price range: GBP £37.50 through GBP £45.00
    Hot
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    LL-XP1G1C,1GE CATV ONU XPON GPON/EPON ONU 1GE+CATV+SCAPC

    ,
    GBP £30.00
    -50%
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

    2.5G ONU with Media Converter GPON ONU LL-XS2510

    Original price was: GBP £149.25.Current price is: GBP £74.25.
    New
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

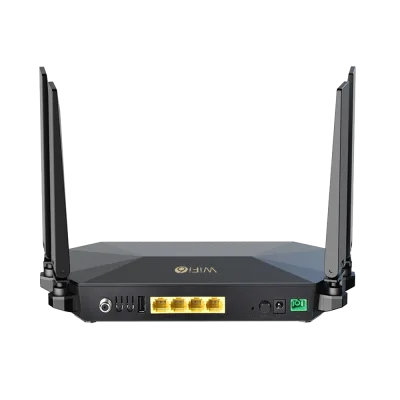

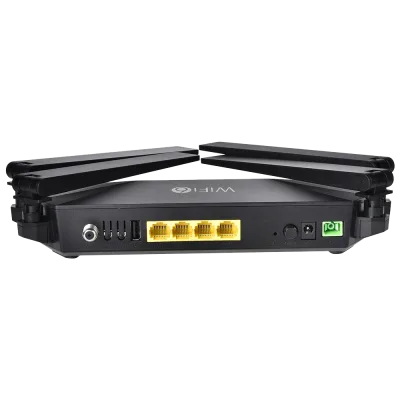

    LL-XP4GW1800C, 4GE XPON ONU, WIFI Dual, CATV ONT, WIFI 6, AX1800

    , ,
    GBP £66.75
    HotNew
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

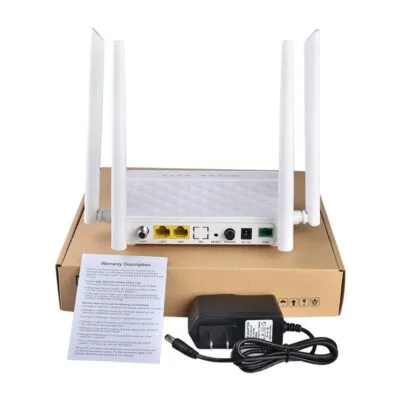

    LL-XP2GWDCATV, 2GE XPON ONU, WIFI Dual Band, FTTR, 2.4G + 5G, CATV ONU

    , ,
    GBP £60.00
    -20%Hot
    Quick view
    Add to wishlist
    Select options This product has multiple variants. The options may be chosen on the product page

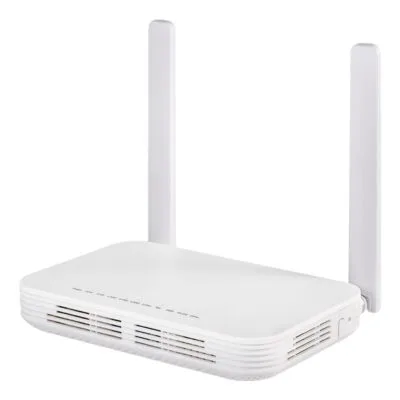

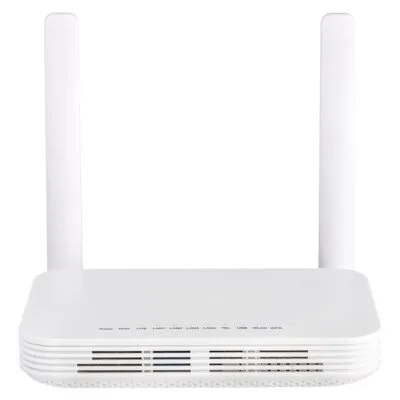

    LL-XP4GW3000D, 4GE XPON ONU, WIFI6 AX3000, Dual Band

    ,
