8 Port 10G SFP+ Managed Switch,L2+ Managed Switch, Fanless Web Management

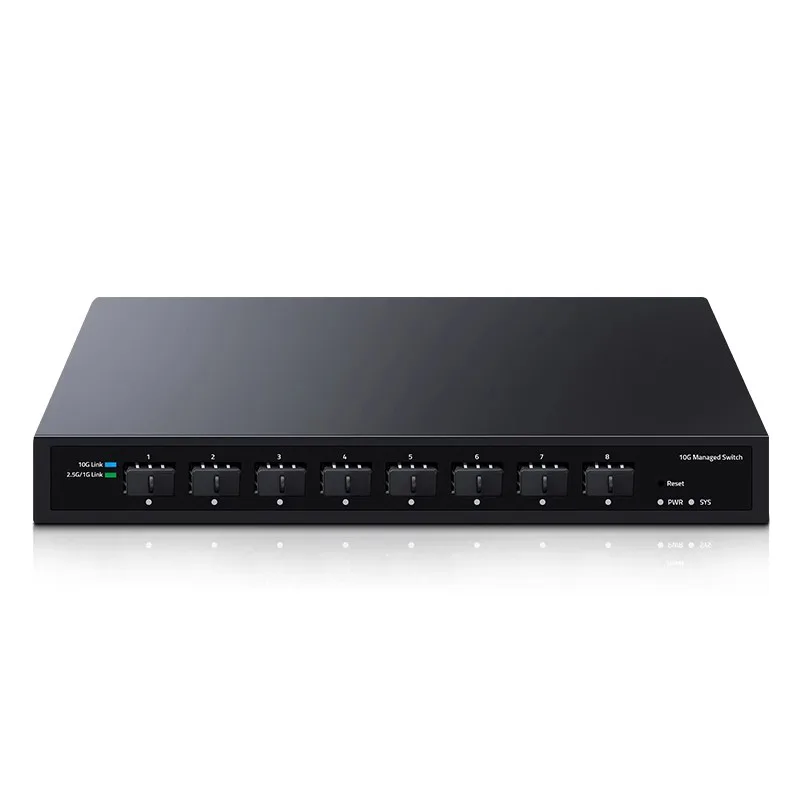

8 Port 10G SFP+ Managed Switch Overview

The 8 Port 10G SFP+ Managed Switch provides eight high-speed SFP+ slots for building compact 10Gbps fiber and direct-attach copper networks.

With a switching capacity of 160Gbps and a forwarding rate of 119.04Mpps, the switch is designed to handle simultaneous high-bandwidth traffic between servers, NAS systems, storage devices, workstations, routers, and other network switches.

The web management interface supports commonly used Layer 2 functions, including 802.1Q VLAN, link aggregation, LACP, port mirroring, storm control, spanning tree, RSTP, multicast management, QoS, DHCP snooping, and SNMP. These functions allow administrators to segment networks, combine multiple links, prioritize important traffic, and monitor port activity.

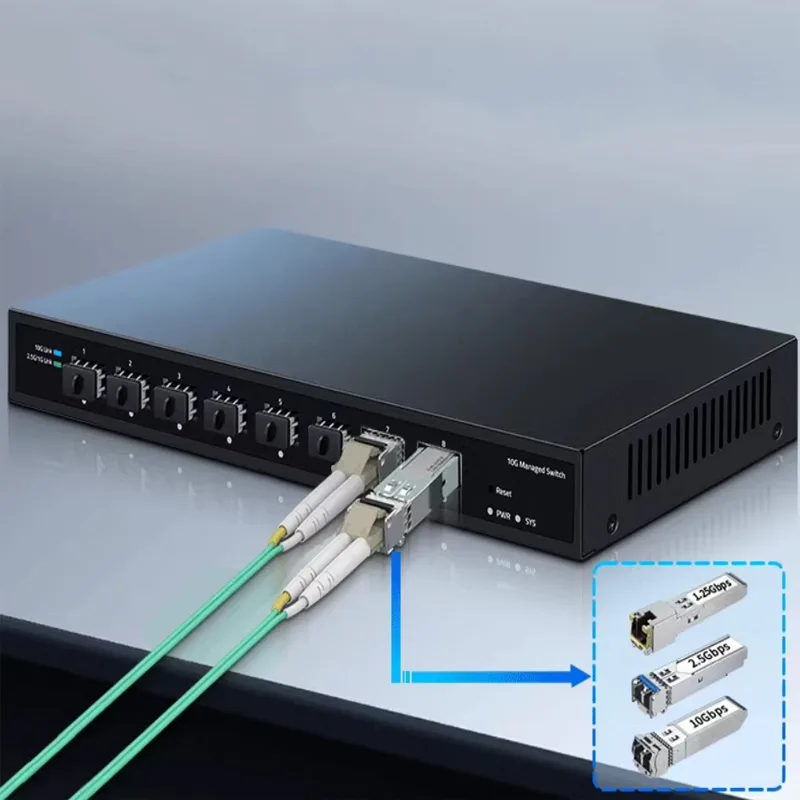

The eight SFP+ slots support compatible 10G modules and selected 1G or 2.5G modules. Port speed configuration may be required when using lower-speed SFP modules, so the module type and equipment model should be confirmed before deployment.

A fanless metal enclosure provides silent operation and passive heat dissipation, making the switch suitable for offices, home labs, equipment rooms, NAS networks, and other noise-sensitive environments.

Key Features

• Eight multi-rate SFP+ network ports
• Compatible 1G, 2.5G, and 10G operation
• 160Gbps switching capacity
• 119.04Mpps forwarding performance
• 12Mbit packet buffer
• 16K MAC address table
• Up to 4K active VLANs
• 802.1Q VLAN management
• Link aggregation and LACP
• STP and RSTP support
• QoS and bandwidth management
• Port mirroring and storm control
• DHCP snooping and SNMP
• Fanless metal enclosure
• Web-based configuration

Applications

• 10G NAS and storage networks
• Server-to-switch connections
• Switch aggregation
• Home lab networks
• Small business server rooms
• Video editing storage systems
• High-speed workstation networks
• Fiber network distribution
• Data center rack connections
• Network testing laboratories

Technical Specifications
