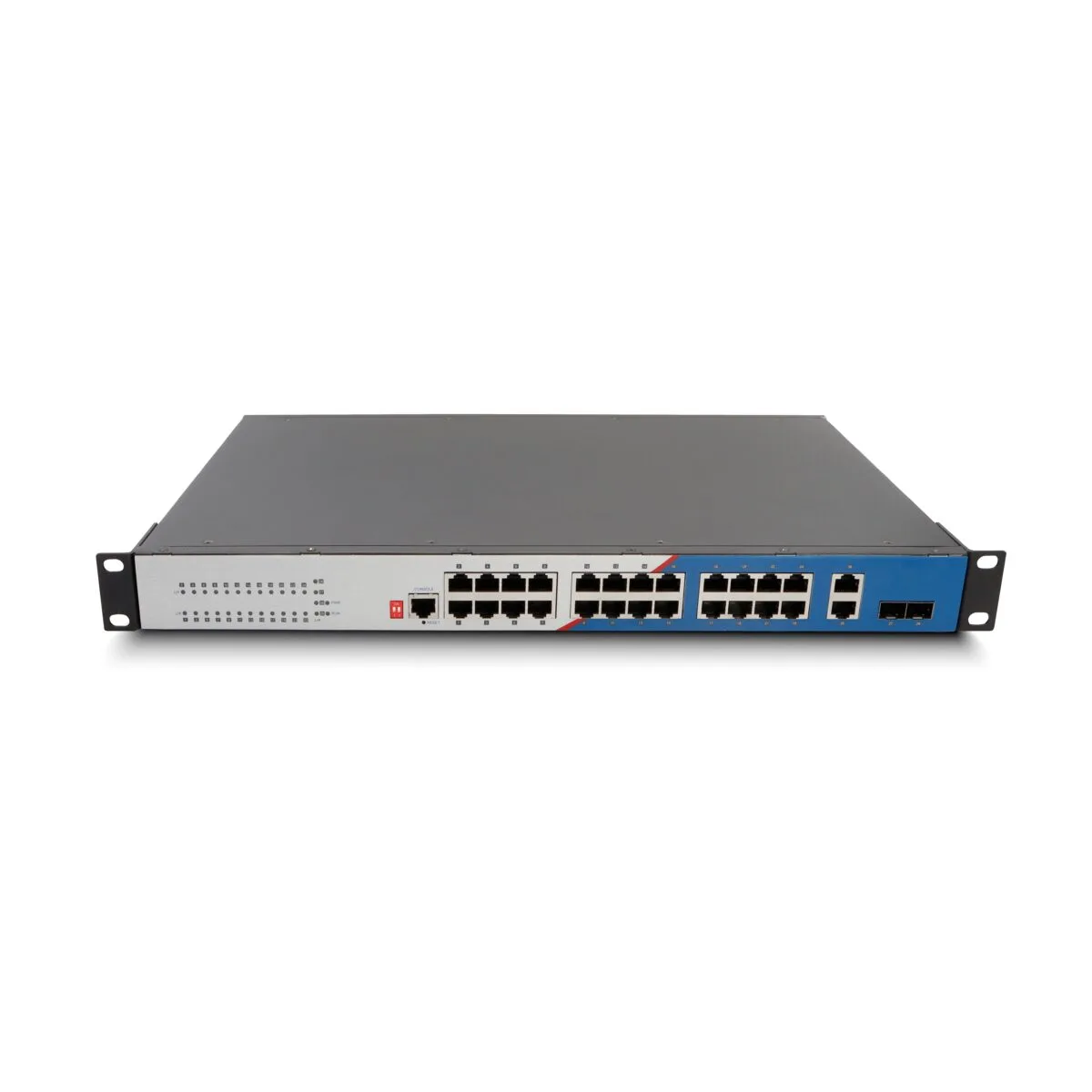

INS2M2GF26GT,28-port L2+ managed rack Ethernet switch with 2 Gigabit optical ports, 26 Gigabit electrical ports

USD $475.00

SKU: INS2M2GF26GT Category: Tags: ,

L2+ Managed switches
Supports L2+ Managed features: supports web-based network management
Support vlan, QOS, RSTP, SNMPV1/V2 , IGMP Snooping V1/V2/V3.
Support GMRP support: port aggregation, loop detection, port mirroring, bandwidth control, jumbo frame setting, static MAC, storm suppression, port statistics, file management configuration upload and download.
*Supports one-key restoration of factory settings and reboot.
*Provide two-block dipswitch function (vlan port isolation, ring network, forced 10M)
*EMC: 8kv air discharge, 6kv contact discharge, 4kv port lightning protection, 2kv power lightning protection
*vip channel 1-8 ports (QOS priority)

Guaranteed Safe Checkout

Description

Specification

Model Num INS2M2GF26GT
Brand LuLeey
Product Name INS2M2GF26GT,28-port managed rack Ethernet switch with 2 Gigabit optical ports, 26 Gigabit electrical ports
Size 300*440*44mm
Back plane bandwidth 128Gbpsย ย ย ย ย
Installation method rackmount
POE Not Support
web management yes
RJ45 Ports 10/100/1000M
SFP Ports SFP 1000M
IP Rating IP30
Power Input Single
Power AC220V
PoE Budget/Singleย  Port Not PoE
Shell Material Iron Shell
Working Temperature ย -20~75หšC
Storage Temperature ย -40~85หšC

Features

Industrial switches engineered for extremesย | LuLeey

Industrial switches pass 16 industrial-grade test procedures to meet EMC Level 4 requirements.

Temperature Protection

-40โ„ƒ๏ฝž85โ„ƒ working environment

Industrial Grade Chips

All ports have wire-speed forwarding capability
Supports Auto MDI/MDIX (port rollover) function

EMC LEVEL 4

15kv air discharge, 8kv contact discharge, 6kv port lightning protection, 4kv power supply lightning protection

IP40

Adopting industrial grade IP40 protection level, stable and worry-free operation, safe and reliable

Power Supply Protection

Voltage range DC 9~48V, dual power supply redundancy

Port Isolation Switch

Provides two-position dip switch functionality (storm suppression and vlan port isolation)

DIN
Additional information
Weight 4.5 kg
Dimensions 10 × 10 × 10 cm
Industrial Switch RJ45 Port

10/100/1000M
Industrial Switch Fiber Port

SFP 1000M
