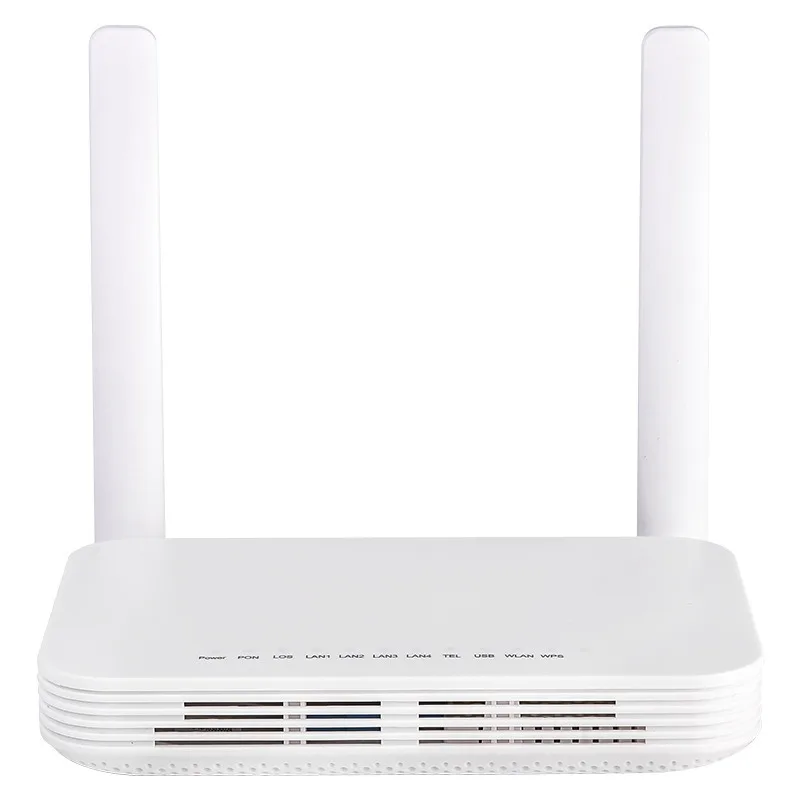

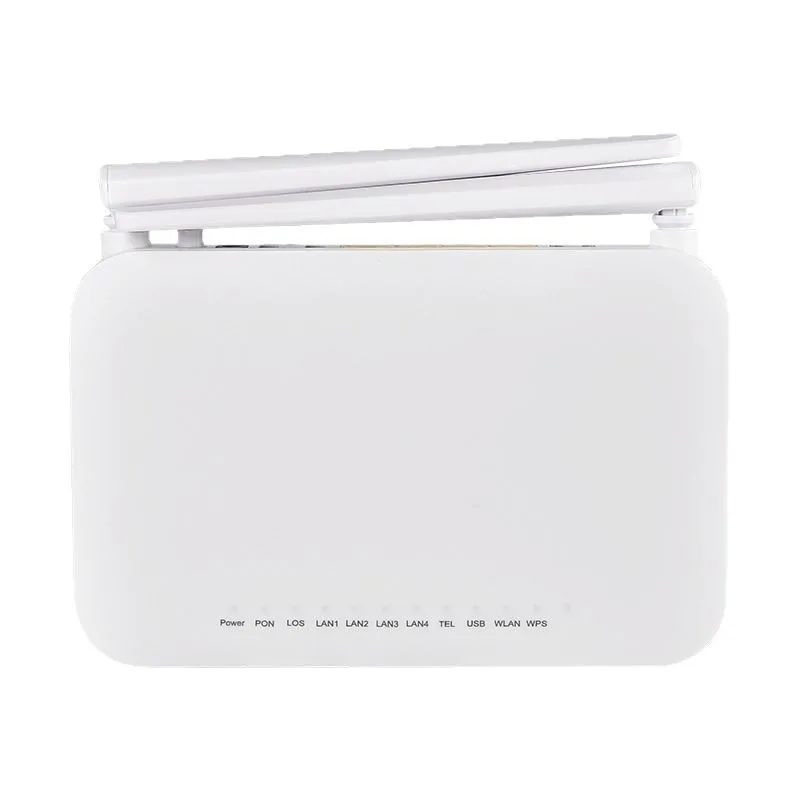

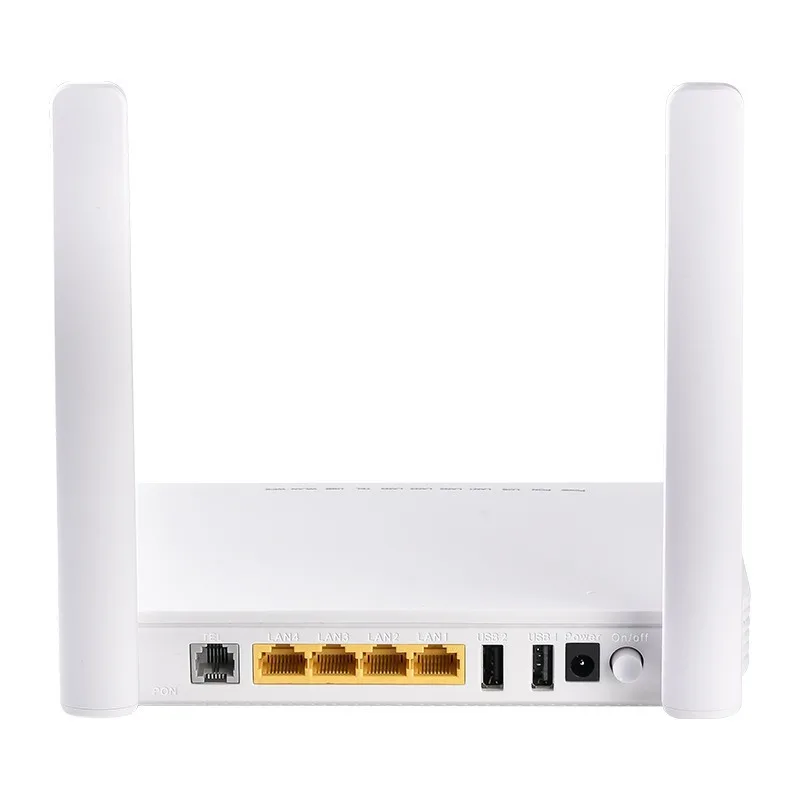

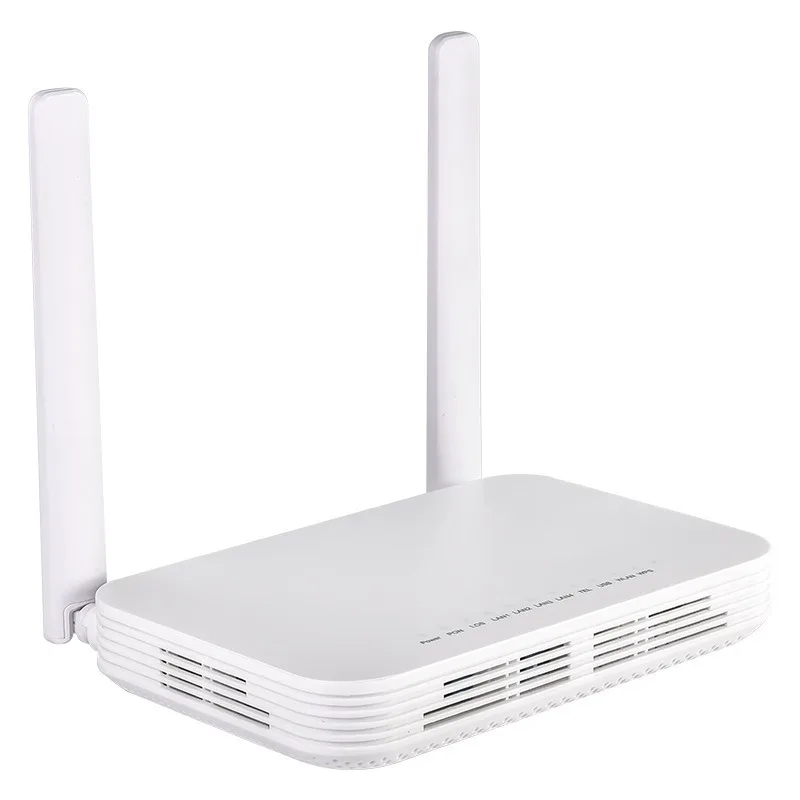

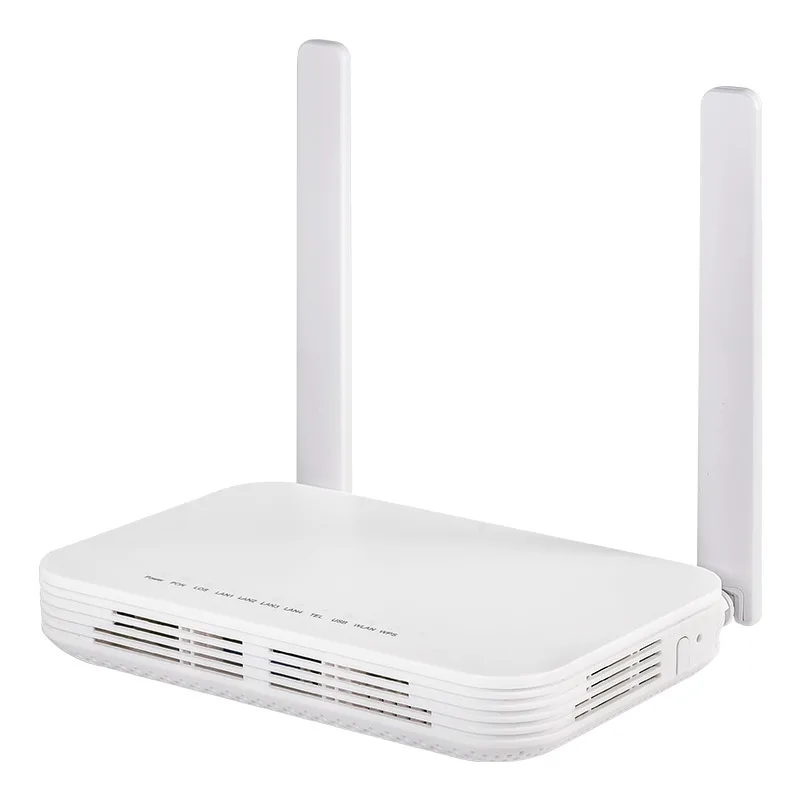

LL-XP4GW3000D, 4GE XPON ONU, WIFI6 AX3000, Dual Band

Original price was: GBP £75.25.Current price is: GBP £60.25.

SKU: 4GE XPON ONU WIFI6 AX3000 Categories: , Tags: , , ,

4GE+VOIP+USB2.0+USB3.0 +WiFi6 AX3000+ xPON ONU technology

LL-XP4GW3000D support Route PPPoE/DHCP/Static IP and Bridge mode.

Support ONU auto-discovery in GPON  or EPON network.



Guaranteed Safe Checkout

Description

Features

  1. Work for GPON OLT or EPON OLT.
  2. Compatible with OLT Huawei/ZTE/Fiberhome/VSOL/HIOSO…
  3. Supports IEEE802.3/802.3ah protocols
  4. Supports auto-discovery and registration
  5. Supports DBA and multiple SLAs
  6. Supports IEEE802.1D RSTP
  7. Supports IGMP SNOOPING V2 multicast
  8. Supports VLAN function
  9. Support SNTP client automatic time synchronization
  10. Support OMCI / OAM
  11. Supports the WEB configuration function
  12. Supports working  MDI/ MDIX auto
  13. Support IGMP snooping

Specification

Model LL-XP4GW3000D
Brand LuLeey
Chips HiSilicon chip
Ports 4GE + SCUPC /SCAPC+VOIP+USB2.0+USB3.0+WIFI6 AX3000
Power supply 12V DC, 1.5 A
Power adapter input 100 – 240 V AC, 50/60 Hz
Operating humidity 5% RH to 95% RH (non-condensing)
Static power consumption 5 W
Maximum power consumption 10W
Indicators POWER/PON/LOS/LAN/TEL/USB/2.4G/5G/WPS
Size 195*145*35mm
PON INFORMATION
Working wavelength PON: up 1310nm，down 1490nm
TX Optical power value 0.5～4dbm
RX Optical power sensitivity -28dBm
Transmission distance 0～20km
Transmission rate GPON:Up 1.244Gbps；down 2.488Gbps
WIFI INFORMATION
Working mode IEEE 802.11 b/g/n/AC/AX
Antenna pattern External 2*2T2R External antenna
Antenna gain 5dBi
Wireless bandwidth Support 20MHz/40MHz/80MHz/160MHz
Interface rate Maximum rate : 2.4G 576Mbps
5.8G 2400Mbps
SSID Up to 4 SSID broadcasts are supported
Additional information
Weight 0.35 kg
Dimensions 10 × 10 × 10 cm
Insert port

SC APC

,

SC UPC
Power adapter type

EU Adapter

,

US Adapter
