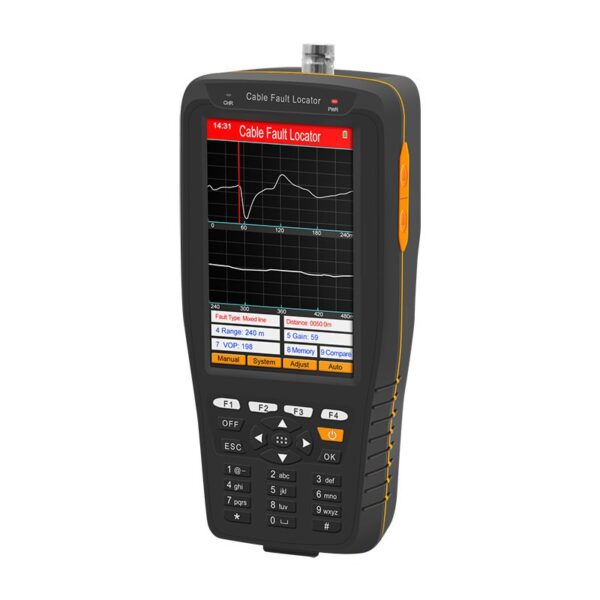

Cable Fault Tester 8KM TDR LL-TDR-8KM
Cable Fault Tester 8KM TDR LL-TDR-8KM EUR €328.01
Back to products
MINI OTDR Optical Time Domain Reflector
MINI OTDR Optical Time Domain Reflector EUR €221.51 EUR €255.59Price range: EUR €221.51 through EUR €255.59

MINI AGC FTTH Optical Receiver

EUR €16.09

SKU: Mini AGC FTTH Optical Receiver Category: Tags: , ,

AGC FTTH Optical Receiver with High Linearity Photo diode, 1GHz Bandwidth, Low noise GaAs Amplifier, Compact Housing, 12v DC Power Input

– High Linearity Photo diode: Ensures accurate and reliable signal reception, guaranteeing excellent picture and sound quality in your FTTH fiber optic network.

– 1GHz Bandwidth: Supports high-speed data transfer and uninterrupted streaming, allowing you to enjoy seamless digital experiences without any lag or buffering.

– Low noise GaAs Amplifier: Minimizes signal distortion and interference, delivering clear and crisp audiovisuals even in environments with high ambient noise.

– Compact Housing: The receiver’s small and sleek design allows for easy installation and discreet placement, making it suitable for any home or office setup.

– 12v DC Power Input: Offers flexibility in powering the receiver, enabling compatibility with various power sources and ensuring consistent performance.



Guaranteed Safe Checkout

Description

LL-OACG-1G Mini AGC FTTH Optical Receiver is designed for PON FTTH

broadband analog or digital RF services.Working at extremely low optical input power,LL-OACG-1G still generatesexcellent broadband RF signals for home subscribers.

Features

  1. High Linearity Photo diode
  2. 1GHz Bandwidth
  3. Low noise GaAs Amplifier
  4. Compact Housing
  5. 12v DC Power Input

123

Specification

Model LL-OACG-1G
Input light wavelength  1290-1600 nm
Working light power  -15~+2dBm AGC
Optical receiver  SC/APC
Light echo loss  55dB
RF bandwidth  40-1000MHz
RF connector  F Female
RF output impedance  75Q
RF output level  86dBuV @ -15~+2dBm AGC input
AGC range  1dB
RF flatness  ± 0.75dB
RF echo loss >16 dB
CNR >50 dB @ -2dBm input
79 channels  ≥ 60dB
CTB 79 channel  ≥ 60dB
Power supply  12V DC
Power consumption <2.8W
Working temperature  -10~+60 °C
Storage temperature  -40~+85 ℃
Size (length * width * height) (mm)  80 ×62 × 29



Additional information
Weight0.35 kg
Dimensions10 × 10 × 10 cm
color1310 SC/APC, 1550 SC/APC
