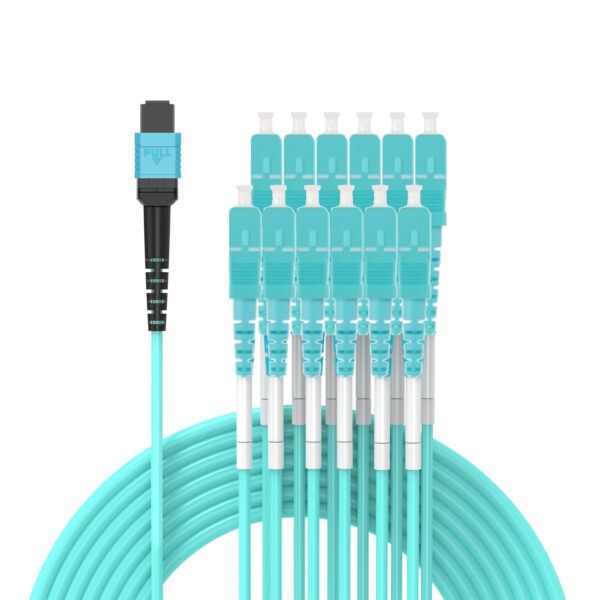

MPO to 12 x SC , OM3 MM
Price range: GBP £33.00 through GBP £68.75
MTP/MPO Fiber Optic Loopback, OM4 MM
Price range: GBP £22.50 through GBP £32.25

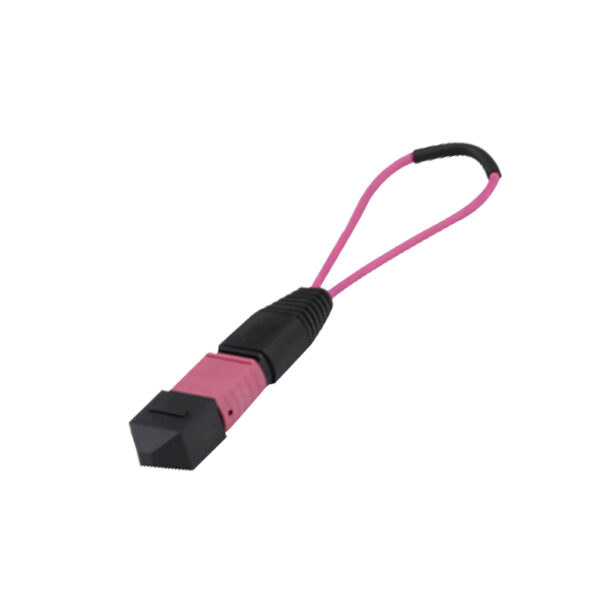

MTP/MPO Fiber Optic Loopback, OM3 MM
Price range: GBP £22.50 through GBP £32.25
- MPO Fiber Optic Loopback Tester (Multimode 50/125um OM3 12 Fibers) Type-B, compatible 8/12/24 Fibers
- This MPO push/pull connector is the standard found in all QSFP and QSFP+ modules. Plug-and-play, don’t require extra setup.
- Each MPO connector features a physical contact (PC) polish to reduce insertion loss during testing
- Fully compliant to MPO specifications Supports QSFP+ transceivers
- Ideal for a multitude of applications that require signal looping in a MPO form factor, quickly test multimode QSFP and QSFP+ Fiber Transceivers at 10Gb, 40GB and 100GB rates.
Guaranteed Safe Checkout
Description
Features
- MTP/MPO Fiber Optic Loopback is highly compatible and can be used in all kinds of fiber-optic local area networks, fiber-optic communication systems, instruments and meters, network CATV.
- Low insertion loss ensures stable and high-speed transmission.
- High-quality fiber core, stable transmission, high speed and stable transmission up to 40G /100G.
- LSZH low smoke and halogen-free flame retardant, strong tensile strength and durability.
Specification
| Brand Name | LuLeey |
| Origin | Mainland China |
| Product Name | MTP/MPO Fiber Optic Loopback, OM3 MM |
| Connector type MPO | MPO Female |
| Transmission rate | 40G / 100G |
| Fiber Type | Multi Mode |
| Insertion Loss MPO | ≤ 0.35dB |
| Return loss | ≥ 50dB |
| Working wavelength | 850nm/1300nm |
| Small bending radius of optical cable (static) mm | 10 times the outer diameter of the optical cable |
| Small bending radius of optical cable (dynamic) mm | 20 times the outer diameter of the optical cable |
| Tensile strength | ≥500N |
| Storage temperature | -40~+85°C |
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 10 × 10 × 10 cm |
| Number of MPO cores |
12 ,24 ,8 |
