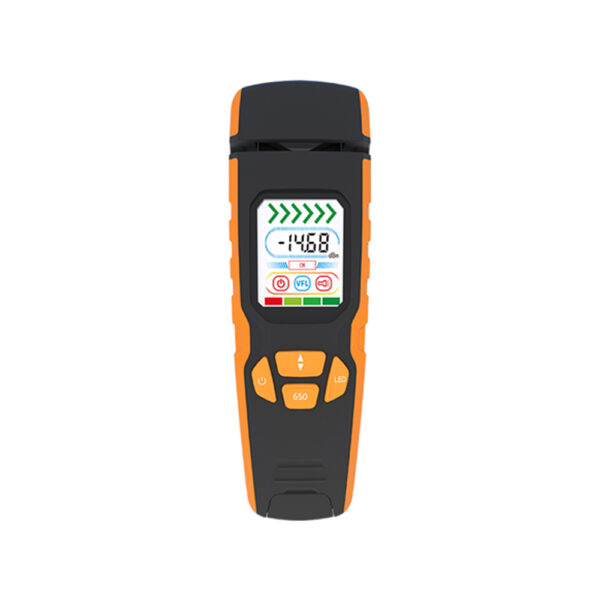

LL-S2 Rechargeable Fiber Optic Identifier
USD $110.00
PLC Splitter 1×2 SC APC / UPC
Price range: USD $7.99 through USD $53.99
The function of a PLC (Passive Optical Splitter) in an optical network is to split the optical signal from a single input port into multiple output ports.the PLC splitter is a key passive optical component that enables the efficient distribution and routing of optical signals in fiber optic communication networks, supporting the delivery of services to multiple users over a shared infrastructure.
Guaranteed Safe Checkout
Description
Specification
| Model | 1×2-0.9MM-SC APC PLC Splitter |
| Splitter type | PLC splitter |
| Use for | fiber optical |
| Network | Wireless Lan, wifi, 4g |
| Operating Wavelength (nm) | 1260~1650 |
| Fiber Type | SMF-28e or customer specified |
| OEM | Acceptable |
| Splitter Chip Brand | PPI |
| Package | Box or Bag |
| Connector Type | SC APC /SC UPC |
| Application | Telecommunication |
| Split ratio | 1×4 1×2 1×8 1×16 1×32 |
| 11xN (with connector) | |||||||||||||
| (Number of Channels) | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
| (Operating Wavelenth) | 1260 to 1650 | ||||||||||||
| P Level Insertion Loss | 4 | 7.4 | 10.5 | 13.7 | 17 | 20.3 | 4.4 | 7.6 | 10.8 | 14.1 | 17.4 | 20.7 | |
| S Level Insertion Loss | 4.2 | 7.6 | 10.7 | 14 | 17.3 | 20.7 | 4.6 | 7.9 | 11.2 | 15 | 18.1 | 21.7 | |
| (Uniformity) | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 2 | |
| (PDL) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | |
| (Return Loss) | more than 55 | ||||||||||||
| (Directivity) | more than 55 | ||||||||||||
| (Type of fiber) | ITU G657A | ||||||||||||
| (Operating temperature) | -40 to 85℃ | ||||||||||||
| (Pigtail length) | 1m(default) or customized | ||||||||||||
