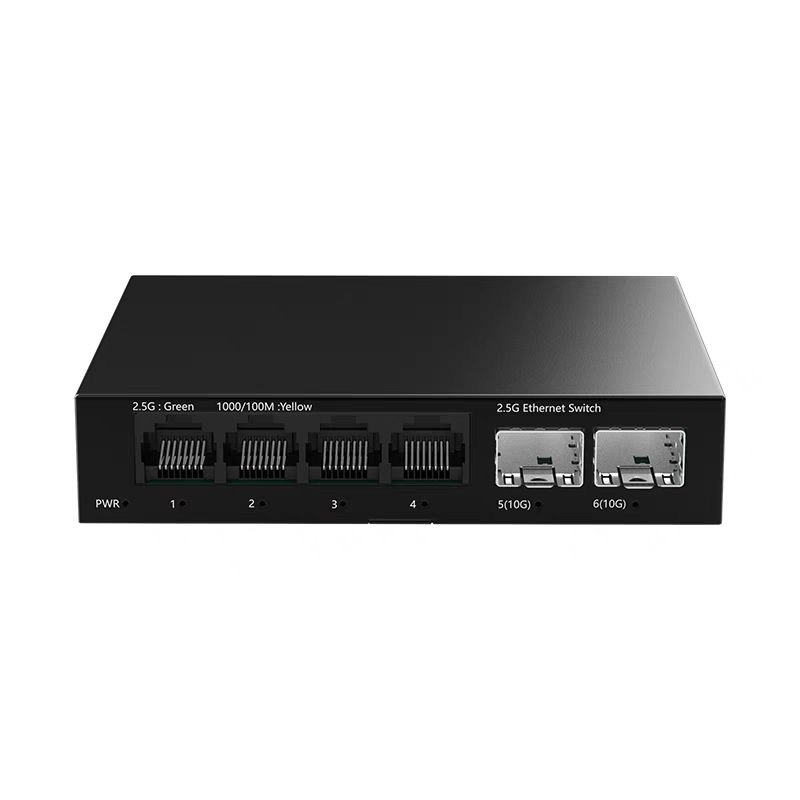

Features
- Ethernet high-speed port: 4 x 10M/100M/1000M/2.5G adaptive port
- Optional POE version: supports the 802.3AF/AT standard protocol, with a maximum single port power of 30W, which helps deploy security networks
- High speed forwarding: Internal integration of high capacity cache effectively reduces data forwarding latency, and all ports can achieve non blocking line speed forwarding
- Efficient heat dissipation: metal material, double sided air vents
- Plug and Play: Depending on the type of network cable inserted, MDI/MDIX flipping can be automatically performed and port efficiency can be automatically negotiated without any configuration.
- Port speed: 4×2.5Gbps ports, 2x10G SFP+ uplink port
- Machine power consumption: ≤12W DC12V 1.0A
- 6kV lightning protection
- Support web management
- support vlan
- support Link Aggregation
-
loop detection
4KT lightning protection
1. 2.5G Ethernet Switch shell is made of high-quality metal sheets and has high-strength lightning protection effect.
2. It can be used even when used outdoors in severe weather.
Plug and play, no setup required
1. No settings required, supports hot swapping
2. Connect the optical fiber and network cable to use
Wide range of applications
- Hospital
- Enterprise
- School
- Supermarket
- Family NAS
- gpon stick access
Specification
| Model | LL-L2+MES-425GE2SFP+ |
| Power input | AC 100-240V |
| Packet forwarding rate | 44.64Mbps |
| MAC address | 4K |
| Backplane bandwidth | 60Gbps |
| Forward mode | store and forward |
| Network protocol | IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3bz |
| Network media requirements | 10/100/1000BASE-TX,Cat 6 and above unshielded twisted pair |
| Network cable transmission distance | less than or equal to 100 meters |
| Network port functions | fast forwarding, MAC automatic learning and aging, IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control |
| Working temperature | -10℃~55℃ |
| Storage temperature | -40℃~85℃ |
| Size | 140mm*92mm*28mm |
Vladimiro De Angelo –
Debbie Tanner –
Was able to configure it to pass my vlans fine. Not tried for thruput yet, but serve the home rated these ones quite favourably. These are a cost effective option for me to get 10GB to the desktop and still connect other devices at the same location. Am using cheap SPF+’s and some pre-terminated fibre and all is working well to get better than gig speeds to my NAS
Gianmaria De Sario –
Gayla Tincher –
Very satisfied with the purchase. I use together with Intel x520-da1 Nic and onti 10g SFP + DAC cable. 10 Gigabit speed without additional settings. The seller gave detailed advice, quickly sent the goods. Recommend!
Maximilien Chopin –
Aamir Boyd –
Great little network switches. Massive speed upgrade for my Synology NAS. Using 2 switches connected via 10G fiber to link NAS to PC with 10GbE. The only minor annoyances I’ve noticed are not being able to configure the default language, you have to set it to English every time you sign in. And the included power supplies seem to run a bit warm, with an audible hum. I replaced them with equivalent UL listed power supplies that run quiet and cool.
Windy Milnes –
Working well so far! Using 4 of the Ethernet ports and 1 of the SFP+ with 10G MM Fiber. Passes along my vlans successfully. Store answered the Qs I had quickly.
Samirah Hood –
Recommend. default ip was 192.168.2.1. there are some config by web.
Prudence Rodden –
Fast and correct.
Niam Mullins –
Adella Tarry –
These switches are great to use at the desktop where I can pass the 10 gig thru to the computer with a DAC cable, and then get 4 ports for other devices.
Work perfectly uplinked to my unifi gear with a DAC cable, as well as with optical SM SFP+ modules for my runs where DAC was not long enough. Will buy again as I need more when I get more SM fibre thru the house.
Eleri Barnes –
Does anyone know how to turn on “Link Aggregation”? I looked at the options and I don’t see anything related to link aggregation.
Lisabeth Brennen –
Jeg købte denne switch og var først lidt skeptisk da man intet kan finde ud af om dette mærke
Men jeg kan fortælle jer andre der skulle have lyst til at købe den her switch at den er helt klart pengene værd!
Kemberly Roza –
Derrick Sclafani –
Iside Casaletto –
Diedra Spath –
Marchelle Dowden –
Dastan Nurbolatev –
Great little network switches. Massive speed upgrade for my Synology NAS. Using 2 switches connected via 10G fiber to link NAS to PC with 10GbE. The only minor annoyances I’ve noticed are not being able to configure the default language, you have to set it to English every time you sign in. And the included power supplies seem to run a bit warm, with an audible hum. I replaced them with equivalent UL listed power supplies that run quiet and cool.
Shante Dezern –
Everything is fine so far. I haven’t been able to fully test it yet.
Ildefonso Sollami –
works as expected. the management UI is a bit buggy but serviceable. Checkout the sth forums for more discussion on these switches.
Lelah Pelosi –
Arrived in St. Petersburg in 11 days. Without damage. In one of the SFP ports, the module from the same store was installed on 10GB RJ45. on a 5e cable with a length of 10 meters, 10GB was automatically raised without any problems. The real speed is not yet checked, because The network card has not yet arrived for the server.
The web interface is quite simple and there is no big sense in it. I ‘ve turned off all this stuff and I’m satisfied.
The module heats up quite a lot. Covered it with small radiators from all sides. In addition, he opened the switch and stuck a radiator to the SFP connectors. The temperature has dropped.
When it is possible to check the connection speed, I will try to add feedback.
Craig Piro –
Working well so far! Using 4 of the Ethernet ports and 1 of the SFP+ with 10G MM Fiber. Passes along my vlans successfully. Store answered the Qs I had quickly.
Efan Wharton –
works as expected. the management UI is a bit buggy but serviceable. Checkout the sth forums for more discussion on these switches.
Moriya Masanobu –
Kholmatzhon Daniarov –
Jaimee Harter –
Tested on 2.5gb link. Works well.
